JSON Web Token (JWT) Authentication

Introduction

JSON Web Token (JWT) is an open standard (RFC 7519) that defines a compact and self-contained way for securely transmitting claims between parties as a JSON object. The information in the JSON object is digitally signed using either a secret (with the HMAC algorithm) or a public/private key pair (using RSA or ECDSA encryption) allowing the JWT to be used for client authentication.

JWT Workflow

JWTs are commonly used in OAuth 2.0 and OpenID Connect flows to authenticate users and authorize access to APIs. The following diagram illustrates the typical flow of JWT authentication with Tyk Gateway:

    sequenceDiagram
    participant User
    participant IdP as Identity Provider (IdP)
    participant Client as Client Application
    participant Tyk as Tyk Gateway

    User->>IdP: Authorizes Client
    IdP-->>Client: Issues JWT (with claims)
    Client->>Tyk: Sends API request with JWT
    Tyk->>IdP: (Optional) Fetch JWKS for validation
    Tyk-->>Tyk: Validates JWT Signature
    Tyk-->>Tyk: Extracts Claims
    Tyk-->>Tyk: Applies Security Policies based on Claims
    Tyk-->>Client: Forwards request or responds


1. Token Issuance by Identity Provider (IdP): The Identity Provider (IdP) issues a JWT with the appropriate claims. These claims represent the permissions granted by the user to the client application.

2. Client as Token Bearer: The Client Application acts as the bearer of the JWT (access token). Although the client may have access to multiple APIs, the user’s delegated scopes restrict actual access. For example, a client with access to 5 APIs might only get a token allowing access to 2, depending on the user’s delegation.

3. JWT Presented to Tyk Gateway: The client includes the JWT in its API requests to the Tyk Gateway as an access token.

4. JWT Validation via JWK/JWKS: Tyk validates the JWT’s signature using a JSON Web Key (JWK). This key can be statically configured or dynamically fetched from the IdP via a JSON Web Key Set (JWKS) endpoint, supporting key rotation and multiple keys.

5. Authorization via Claims and Policies: Claims within the JWT can be used by Tyk Gateway’s authorization process to configure rate and quota limits via Tyk’s Security Policy system. Within the API definition, JWT claims can be “mapped” onto security policies which will then be applied to the request.

6. Stateless Authentication: A key advantage of JWT authentication is that Tyk does not store any user credentials or session data. It never sees the user directly - it trusts the authorization server to have authenticated the user and issued a valid token.

Key Benefits

This documentation is focused on how to use Tyk’s JWT Auth and there are many excellent sources online where you can learn more about JWTs so we won’t deep-dive into that topic, but to whet your appetite, here are some of the benefits from using JWT with Tyk:

• Stateless Authentication: Eliminates the need for server-side session storage, improving scalability.
• Flexible Integration: Works with multiple identity providers including Auth0, Okta, and custom JWT issuers.
• Enhanced Security: Supports multiple signature validation methods (RSA, ECDSA, HMAC) and claim verification.
• Granular Access Control: Leverage JWT claims for policy enforcement and scope-based permissions.
• Performance Optimized: Efficient token validation with minimal overhead and support for JWKS caching.

Quick Start: Securing APIs with Auth0 or Keycloak

In this tutorial, we’ll secure a Tyk OAS API using JWT authentication with either Auth0 or Keycloak as the identity provider.

We’ll start by configuring the identity provider, then set up JWT validation in Tyk, create a security policy, configure the API to use the policy, and finally test the secured API with a valid token.

Prerequisites

• A Tyk installation (Cloud or Self-Managed) with Tyk Dashboard license
• An Auth0 account or Keycloak installation
• An existing Tyk OAS API (see this tutorial)
• Postman, cURL, or another API testing tool

Step-by-Step Guide

1. Configure Your Identity Provider to obtain your JWKS URI

   The first step is to configure your Identity Provider (IdP) to issue JWTs and provide a JWKS URI that Tyk can use to validate the tokens. Below are instructions for both Auth0 and Keycloak.

   1. Log in to your Auth0 dashboard
   2. Navigate to Applications > APIs and click Create API
   3. Enter a name and identifier (audience) for your API
   4. Note your Auth0 domain (e.g. your-tenant.auth0.com)
   5. Your JWKS URI will be: https://your-tenant.auth0.com/.well-known/jwks.json

   1. Log in to your Keycloak admin console
   2. Create or select a realm (e.g. tyk-demo)
   3. Navigate to Clients and create a new client with:
      • Client ID: tyk-api-client
      • Client Protocol: openid-connect
      • Access Type: confidential
   4. After saving, go to the Installation tab and select “OIDC JSON” format
   5. Your JWKS URI will be: http://your-keycloak-host/realms/tyk-demo/protocol/openid-connect/certs

2. Create a Security Policy

   1. In the Tyk Dashboard, navigate to Policies
   2. Click Add Policy
   3. Configure the policy:
      • Name: JWT Auth Policy
      • APIs: Select your Tyk OAS API
      • Access Rights: Configure appropriate paths and methods
      • Authentication: Select JWT
      • JWT Scope Claim Name: Enter the JWT claim that contains scopes (e.g. scope or permissions)
      • Required Scopes: Add any required scopes for access (optional)
   4. Click Create to save your policy

3. Configure JWT Authentication in Tyk OAS API

   1. Navigate to APIs and select your API
   2. Click Edit
   3. Enable Authentication in the Server section, select JSON Web Token (JWT) as the authentication method
   4. Configure the JWT settings:
      • Token Signing Method: Select RSA Public Key
      • Subject identity claim: Set to sub
      • JWKS Endpoint: Enter your JWKS URI for your IdP obtained in step 1
      • Policy claim: Set to pol
      • Default policy: Select JWT Auth Policy (the policy you created previously)
      • Clock Skew (optional): Set to accommodate time differences (e.g. 10)
      • Authentication Token Location: header
      • Header Name: Authorization
      • Strip Authorization Data: Enabled
   5. Click Save API

4. Test your API

   1. Obtain a JWT from your IdP
   2. Make a request to your API providing the JWT as a Bearer token in the Authorization header; Tyk will validate the JWT using the JWKS that it retrieves from your JWKS URI
   3. Observe that the request is successful

       curl -X GET {API URL}  -H "Accept: application/json" -H "Authorization: Bearer {token}"


How JWT Authentication works with Tyk

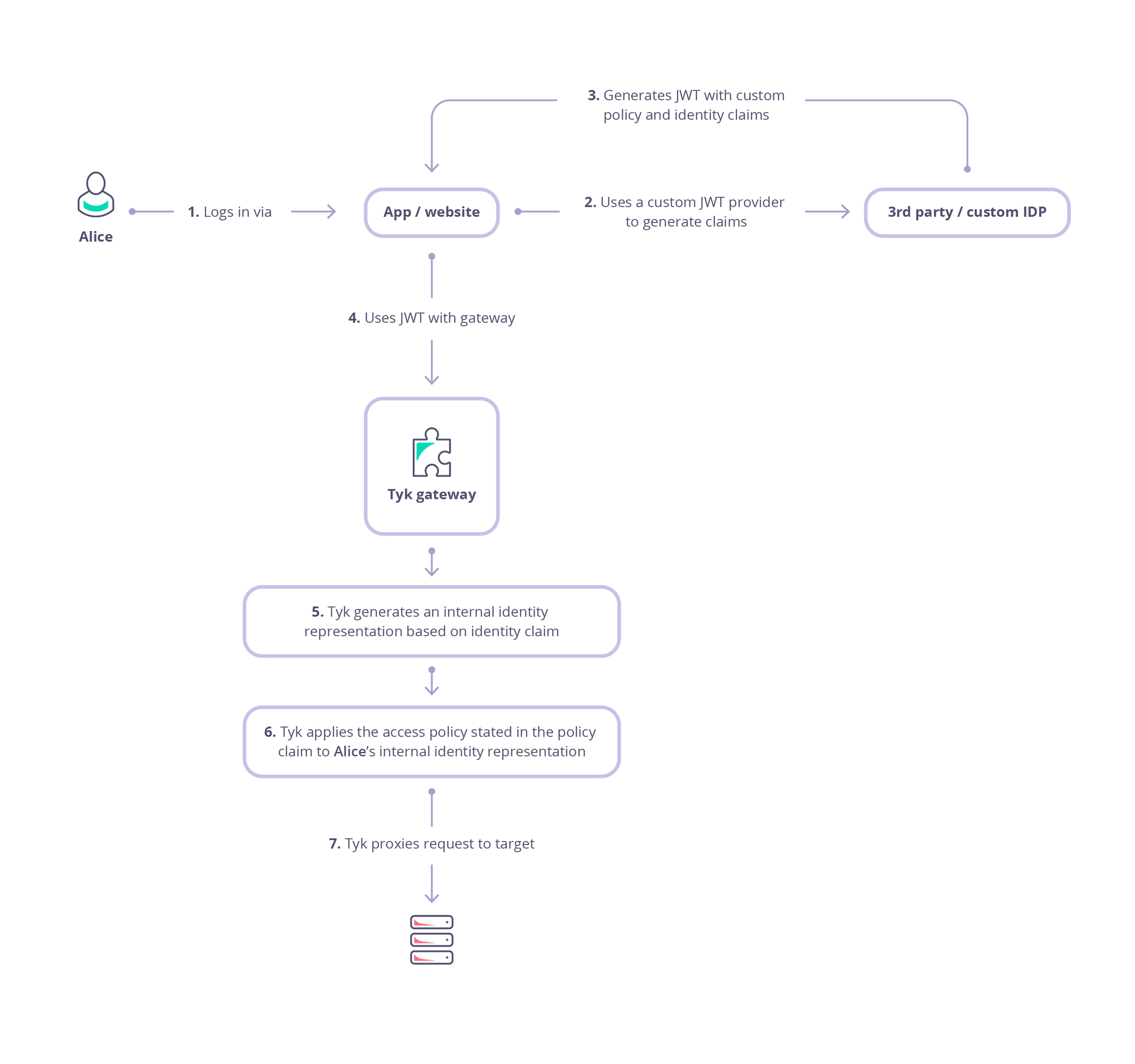

This diagram outlines the flow when using JWT Auth to secure access to your API.

1. Alice (the user or resource owner) authenticates with the Identity Provider (IdP) and consents to delegate specific permissions to a client application (steps 1 and 2).

2. The client application receives an authorization code, which it then exchanges for an access token (step 3). This is a bearer token, meaning that the client can present it to access protected resources on behalf of the user (resource owner / Alice).

3. When the client sends a request to the API gateway , it includes the access token (JWT) in the request - usually in the Authorization header as a Bearer token (step 4).

4. Tyk validates the token’s signature, using the public key(s) of the trusted issuer (IdP):

   • locate the JWT in the request (header, cookie or query parameter)
   • decode the JWT
   • extract the kid (Key ID) from the token header
   • fetch the public keys from all configured JWKS URIs (or use locally declared static public key)
   • merge all the retrieved public keys into a single list
   • search this list for a public key matching the extracted kid
     • if no match is found, the validation fails, and the request is rejected
   • if a matching key is found, the JWT signature is validated using the parameters in the JWK
     • if signature validation fails, the request is rejected
   • if the token is valid and not expired, the request is authenticated as coming from the client, and is accepted

5. Next, Tyk will create an internal session for the request which will be used to control access rights, rate limits, usage quotas and in tracking logs (step 5). The session is linked to Alice using an identity that is extracted from the JWT claims.

6. In step 6 Tyk will proceed to enforce authorization by checking other claims to determine which Security Policies should be applied to the session:

   • check for the value in the policy claim within the JWT (identified by the value stored in basePolicyClaims)
   • use this to identify the Tyk Security Policy (or policies) to be applied to the request
     • if there is no direct policy mapping, then the defaultPolicy will be used
   • apply the identified policies to the session, configuring access rights, rate limits and usage quota

Configuring your API to use JWT authentication

The OpenAPI Specification treats JWT authentication as a variant of bearer authentication in the components.securitySchemes object using the type: http, scheme: bearer and bearerFormat: jwt:

components:
  securitySchemes:
    myAuthScheme:
      type: http
      scheme: bearer
      bearerFormat: jwt

security:
  - myAuthScheme: []

With this configuration provided by the OpenAPI description, in the Tyk Vendor Extension we need to enable authentication, to select this security scheme and to indicate where Tyk should look for the credentials. Usually the credentials will be provided in the Authorization header, but Tyk is configurable, via the Tyk Vendor Extension, to support custom header keys and credential passing via query parameter or cooke.

x-tyk-api-gateway:
  server:
    authentication:
      enabled: true
      securitySchemes:
        myAuthScheme:
          enabled: true
          header:
            enabled: true
            name: Authorization

Note: that URL query parameter keys and cookie names are case sensitive, whereas header names are case insensitive.

You can optionally strip the user credentials from the request prior to proxying to the upstream using the authentication.stripAuthorizationData field (Tyk Classic: strip_auth_data).

With the JWT method selected, you’ll need to configure Tyk to handle the specific configuration of JSON Web Tokens that clients will be providing. All of the JWT specific configuration is performed within the authentication.jwt object in the Tyk Vendor Extension.

Locating the JWT in the Request

The OpenAPI Specification provides a securitySchemes mechanism that lets you define where the JWT should be located, for example in the request header. However, in practice, different clients may supply the token in different locations, such as a query parameter.

While OAS does not support this natively, the Tyk Vendor Extension does this by allowing configuration of alternative locations in the JWT entry in server.authentication.securitySchemes. Building on the previous example, we can add optional query and cookie locations as follows:

x-tyk-api-gateway:
  server:
    authentication:
      enabled: true
      securitySchemes:
        myAuthScheme:
          enabled: true
          header:
            enabled: true
            name: Authorization
          query:
            enabled: true
            name: query-auth
          cookie:
            enabled: true
            name: cookie-auth

Using Tyk Classic APIs

As noted in the Tyk Classic API documentation, you can select JSON Web Token authentication using the use_jwt option. Tyk Classic APIs do not natively support multiple JWKS endpoints, though a custom authentication plugin could be used to implement this functionality.

Signature Validation

Secret Management

You must provide Tyk with the secret or key to be used to validate the incoming JWTs.

• For the asymmetric methods (RSA and ECDSA) the public key can be stored in the API definition or Tyk can retrieve from a public JSON Web Key Sets (JWKS) endpoint (supporting dynamic rotation of keys in the JWKS)
• For symmetric encryption (HMAC), the secret is shared between the client and Tyk and so is stored within the API definition not on the public JWKS server

Locally Stored Keys and Secrets

When storing the key or secret in the API definition, it is first base64 encoded and then configured in server.authentication.securitySchemes.<jwtAuthScheme>.source. For improved separation of concerns and flexibility, the key/secret can be placed in an external key value store, with the appropriate reference configured in the API definition.

For example, this fragment will configure the JWT authentication middleware to use the secret located at consul://secrets/jwt-secret to validate the signature of incoming JWTs. Note that the external KV store reference has been base64 encoded and then stored in source:

x-tyk-api-gateway:
  server:
    authentication:
      securitySchemes:
        jwtAuth:
          source: Y29uc3VsOi8vc2VjcmV0cy9qd3Qtc2VjcmV0

Remotely Stored Keys (JWKS endpoint)

Prior to Tyk 5.9.0, the middleware can only validate the incoming JWT against a single JWKS endpoint. The full URI (including protocol) must be base64 encoded and configured in <jwtAuthScheme>.source.

For example, the following fragment will configure the JWT authentication middleware to retrieve the JWKS from https://your-tenant.auth0.com/.well-known/jwks.json when validating the signature of incoming JWTs. Note that the JWKS endpoint has been base64 encoded and then stored in source:

x-tyk-api-gateway:
  server:
    authentication:
      securitySchemes:
        jwtAuth:
          source: aHR0cHM6Ly95b3VyLXRlbmFudC5hdXRoMC5jb20vLndlbGwta25vd24vandrcy5qc29u

From Tyk 5.9.0 onwards, Tyk can validate against multiple JWKS endpoints, allowing you to use different IdPs to issue JWTs for the same API. Multiple JWKS endpoints can be configured in the <jwtAuthScheme>.jwksURIs array. Note that these URIs are not base64 encoded in the API definition and so are human-readable. Tyk will retrieve the JSON Web Key Sets from each of these endpoints and these will be used to attempt validation of the received JWT.

For example, the following fragment will configure the JWT authentication middleware to retrieve the JWKS from both Auth0 and Keycloak when validating the signature of incoming JWTs:

x-tyk-api-gateway:
  server:
    authentication:
      securitySchemes:
        jwtAuth:
          jwksURIs:
            - url: https://your-tenant.auth0.com/.well-known/jwks.json
            - url: http://your-keycloak-host/realms/tyk-demo/protocol/openid-connect/certs

Multiple JWKS endpoints and the jwksURIs array are not supported by Tyk Classic APIs.

Claim Validation

JSON Web Tokens contain claims - key-value pairs that provide information about the token and its subject. Tyk can validate these claims to ensure that incoming JWTs meet your security requirements before granting access to your APIs.

Tyk supports validation of both:

• Registered claims: standardized claims defined in the JWT specification (such as iss, aud, exp)
• Custom claims: application-specific claims that contain business logic or additional metadata By validating JWT claims, you can enforce fine-grained access control policies, ensure tokens originate from trusted sources, and verify that users have the appropriate permissions for your APIs.

JWT Claims Fundamentals

What are JWT Claims?

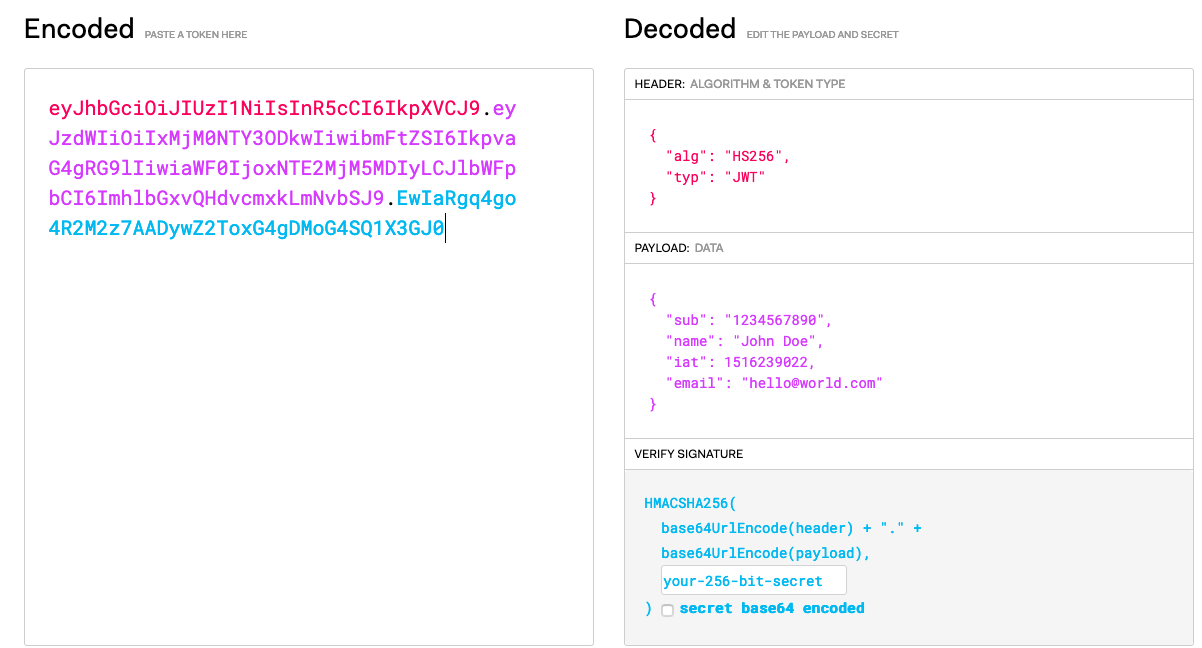

A JSON Web Token consists of three parts separated by dots: header.payload.signature. The payload contains the claims - a set of key-value pairs that carry information about the token and its subject.

{
  "iss": "https://auth.company.com",
  "aud": "api.company.com",
  "sub": "user123",
  "exp": 1735689600,
  "iat": 1735603200,
  "department": "engineering",
  "role": "admin"
}

Claims serve different purposes:

• Identity information: who the token represents (sub, iss)
• Access control: what the token can access (aud, custom permissions)
• Validity period: when the token is valid (exp, iat, nbf)
• Business logic: application-specific data (department, role)

Registered vs Custom Claims

Registered Claims are standardized by the JWT specification (RFC 7519) and have predefined meanings:

Custom Claims are application-specific and can contain any information relevant to your use case, such as user roles, permissions, department, or metadata.

How Tyk Processes JWT Claims

After verifying that the token hasn’t been tampered with, Tyk processes claims in this order:

• Registered Claims Validation: Checks standard claims against your configuration
• Custom Claims Validation: Applies your business rules to custom claims
• Authorization: Uses validated claims to determine API access and apply policies

If any validation step fails, Tyk rejects the request with a specific error message indicating which claim validation failed and why.

Registered Claims Validation

Tyk can validate the seven registered JWT claims defined in RFC 7519. These claims are grouped into temporal claims (time-based validation) and identity claims (content-based validation).

Temporal Claims (exp, iat, nbf)

Temporal claims define when a JWT is valid. Tyk automatically validates these claims when present in the token.

• Expiration Time (exp): the exp claim specifies when the token expires (as a Unix timestamp). Tyk rejects tokens where the current time is after the expiration time.
• Issued At (iat): the iat claim specifies when the token was issued. Tyk rejects tokens that claim to be issued in the future.
• Not Before (nbf): the nbf claim specifies the earliest time the token can be used. Tyk rejects tokens before this time.

Clock Skew Configuration

Due to the nature of distributed systems, you may encounter clock skew between your Identity Provider and Tyk servers. You can configure tolerance for timing differences:

x-tyk-api-gateway:
  server:
    authentication:
      securitySchemes:
        jwtAuth:
          issuedAtValidationSkew: 5      # Allow tokens issued up to 5 seconds in the future
          notBeforeValidationSkew: 2     # Allow tokens to be valid 2 seconds early
          expiresAtValidationSkew: 2     # Allow tokens to be valid 2 seconds past expiration

• expiresAtValidationSkew allows recently expired tokens to be considered valid
• issuedAtValidationSkew allows tokens claiming future issuance to be valid
• notBeforeValidationSkew allows tokens to be valid before their nbf time

Identity Claims (iss, aud, sub, jti)

Identity claims provide information about the token’s origin and intended use. Unlike temporal claims, these require explicit configuration to enable validation.

Issuer Validation (iss)

Validates that the token was issued by a trusted Identity Provider:

x-tyk-api-gateway:
  server:
    authentication:
      securitySchemes:
        jwtAuth:
          allowedIssuers:
            - "https://auth.company.com"
            - "https://auth.partner.com"

Tyk accepts tokens if the iss claim matches any configured issuer. If allowedIssuers is empty, no issuer validation is performed.

Audience Validation (aud)

Validates that the token is intended for your API:

x-tyk-api-gateway:
  server:
    authentication:
      securitySchemes:
        jwtAuth:
          allowedAudiences:
            - "api.company.com"
            - "mobile-app"

The aud claim can be a string or array. Tyk accepts tokens if any audience value matches any configured audience. If allowedAudiences is empty, no audience validation is performed.

Subject Validation (sub)

Validates the token subject against allowed values:

x-tyk-api-gateway:
  server:
    authentication:
      securitySchemes:
        jwtAuth:
          allowedSubjects:
            - "user"
            - "service-account"
            - "admin"

Useful for restricting API access to specific types of subjects or known entities. If allowedSubjects is empty, no audience validation is performed.

JWT ID Validation (jti)

Validates that the token contains a unique identifier:

x-tyk-api-gateway:
  server:
    authentication:
      securitySchemes:
        jwtAuth:
          jtiValidation:
            enabled: true

When enabled, Tyk requires the jti claim to be present. This is useful for token tracking and revocation scenarios. Note that Tyk does not perform any validation on the content of the claim, only that it is present.

Configuration Examples

Basic registered claims validation:

x-tyk-api-gateway:
  server:
    authentication:
      securitySchemes:
        jwtAuth:
          allowedIssuers: ["https://auth.company.com"]
          allowedAudiences: ["api.company.com"]
          jtiValidation:
            enabled: true
          expiresAtValidationSkew: 5

Multi-IdP configuration:

x-tyk-api-gateway:
  server:
    authentication:
      securitySchemes:
        jwtAuth:
          allowedIssuers:
            - "https://auth0.company.com"
            - "https://keycloak.company.com"
          allowedAudiences:
            - "api.company.com"
            - "mobile.company.com"
          subjectClaims: ["sub", "username"]

In this example we expect one Identity Provider to present the subject in the sub claim, and the other to present it in the username claim.

Custom Claims Validation

Custom claims validation allows you to enforce business-specific rules on JWT tokens beyond the standard registered claims. You can validate application-specific data such as user roles, departments, permissions, or any other business logic embedded in your JWTs.

Custom claims are commonly used for such purposes as:

• Role-based access control: Validate that users have required roles (for example admin, editor ,viewer)
• Department restrictions: Ensure users belong to authorized departments
• Feature flags: Check if users have access to specific features or API endpoints
• Geographic restrictions: Validate user location or region-based access
• Subscription tiers: Enforce access based on user subscription levels

Key Benefits of Tyk’s comprehensive custom claim validation framework include:

• Enhanced Security: Add additional layers of validation beyond standard JWT verification
• Business Logic Enforcement: Implement complex authorization rules at the gateway level
• Flexible Validation: Support for multiple validation types and data structures
• Non-blocking Options: Configure warnings instead of blocking requests for certain validations
• Nested Data Support: Validate complex, nested JSON structures within claims

Validation Types

Three distinct validation types are supported by the custom claims validation framework, each designed for different use cases and levels of validation strictness. These validation types can be applied to any custom claim in your JWT tokens, providing flexible control over your authorization logic.

Required

Required type validation ensures that a specific claim exists in the JWT token, regardless of its value. This is the most basic form of validation and is useful when you need to guarantee that certain information is present in tokens.

Use Cases:

• Ensuring user metadata is present (even if empty)
• Validating that required organizational fields exist
• Confirming compliance with token structure requirements

Behavior:

• ✅ Passes if the claim exists with any non-null value (including empty strings, arrays, or objects)
• ❌ Fails if the claim is missing or explicitly set to null

Example Configuration:

customClaimValidation:
  department:
    type: required
  user_metadata:
    type: required

Exact Match

Exact match type validation verifies that a claim’s value exactly matches one of the specified allowed values. This provides precise control over acceptable claim values and is ideal for role-based access control and categorical validations.

Use Cases:

• Role validation (e.g. admin, editor, viewer)
• Environment-specific access (e.g. production, staging, development)
• Subscription tier validation (e.g. premium, standard, basic)
• Boolean flag validation (true, false)

Behavior:

• ✅ Passes if the claim value exactly matches any value in the allowedValues array
• ❌ Fails if the claim value doesn’t match any allowed value or if the claim is missing
• Case-sensitive for string comparisons
• Type-sensitive (string “true” ≠ boolean true)

Example Configuration:

customClaimValidation:
  role:
    type: exact_match
    allowedValues:
    - admin
    - editor
    - viewer
  subscription_tier:
    type: exact_match
    allowedValues:
    - premium
    - standard

Contains

The Contains type validation checks whether a claim’s value contains or includes one of the specified values. This validation type works differently depending on the data type of the claim and is particularly useful for array-based permissions and substring matching.

Use Cases:

• Permission arrays (["read:users", "write:posts", "admin:system"])
• Tag-based access control
• Partial string matching for departments or locations
• Multi-value scope validation

Behavior by Data Type:

Arrays:

• ✅ Passes if the array contains any of the specified values
• ❌ Fails if none of the specified values are found in the array

Strings:

• ✅ Passes if the string contains any of the specified substrings
• ❌ Fails if none of the specified substrings are found

Other Types:

• Converts to string and performs substring matching

Example Configuration:

customClaimValidation:
  permissions:
    type: contains
    allowedValues:
    - admin:system
    - write:api
  department_code:
    type: contains
    allowedValues:
    - ENG
    - SALES

With this configuration, a token might contain these claims:

{
  "permissions": ["read:users", "write:posts", "admin:system"],
  "department_code": "ENG-BACKEND",
}

In this example:

• permissions validation passes because the array contains "admin:system"
• department_code validation passes because the string contains "ENG"

Data Type Support

The framework is designed to handle the diverse data types commonly found in JWT tokens. The validation behavior adapts intelligently based on the actual data type of each claim, ensuring robust and predictable validation across different token structures.

Supported Data Types

String Values

String claims are the most common type in JWT tokens and support all three validation types with intuitive behavior.

Validation behavior

• Required: Passes if the string exists (including empty strings "")
• Exact Match: Performs case-sensitive string comparison
• Contains: Checks if the string contains any of the specified substrings

Example

Claims:

{
  "department": "Engineering",
  "user_id": "user123",
  "email": "john.doe@company.com"
}

Validation configuration:

customClaimValidation:
  department:
    type: exact_match
    allowedValues:
    - Engineering
    - Sales
    - Marketing
  email:
    type: contains
    allowedValues:
    - "@company.com"
    - "@partner.com"

Numeric Values

Numeric claims (integers and floating-point numbers) are validated with type-aware comparison logic.

Validation behavior

• Required: Passes if the number exists (including 0)
• Exact Match: Performs numeric equality comparison (42 matches 42.0)
• Contains: Converts to string and performs substring matching

Example

Claims:

{
  "user_level": 5,
  "account_balance": 1250.75,
  "login_count": 0
}

Validation configuration:

customClaimValidation:
  user_level:
    type: exact_match
    allowedValues:
    - 1
    - 2
    - 3
    - 4
    - 5
  account_balance:
    type: required

Boolean Values

Boolean claims are commonly used for feature flags and permission toggles.

Validation Behavior

• Required: Passes if the boolean exists (true or false)
• Exact Match: Performs strict boolean comparison
• Contains: Converts to string ("true" or "false") and performs substring matching

Example

Claims:

{
  "is_admin": true,
  "email_verified": false,
  "beta_features": true
}

Validation configuration:

customClaimValidation:
  is_admin:
    type: exact_match
    allowedValues:
    - true
  email_verified:
    type: required

Array Values

Arrays are particularly powerful for permission systems and multi-value attributes.

Validation behavior

• Required: Passes if the array exists (including empty arrays [])
• Exact Match: Checks if the entire array exactly matches one of the allowed arrays
• Contains: Checks if the array contains any of the specified values (most common use case)

Example

Claims:

{
  "roles": ["user", "editor"],
  "permissions": ["read:posts", "write:posts", "delete:own"],
  "departments": ["engineering", "product"],
  "tags": []
}

Validation configuration:

customClaimValidation:
  permissions:
    type: contains
    allowedValues:
    - write:posts
    - admin:system
  roles:
    type: contains
    allowedValues:
    - admin
    - editor
    - moderator
  tags:
    type: required

Object Values

Complex object claims can be validated, though typically you’ll want to validate specific nested properties using dot notation.

Validation Behavior

• Required: Passes if the object exists (including empty objects {})
• Exact Match: Performs deep object comparison (rarely used)
• Contains: Converts to JSON string and performs substring matching

Example

Claims:

{
  "user_metadata": {
    "department": "Engineering",
    "level": 5,
    "location": "US"
  },
  "preferences": {}
}

Configuration:

customClaimValidation:
  user_metadata:
    type: required
  preferences:
    type: required

Type Coercion and Edge Cases

Null and Undefined Values

• null values: Always fail validation (treated as missing)
• undefined/missing claims: Fail all validation types except when validation is not configured

Mixed-Type Arrays

Arrays containing different data types are supported. The contains validation will attempt to match values using appropriate type comparison,

{
  "mixed_permissions": ["read", 42, true, "admin"]
}

Type Mismatches

When the expected value type doesn’t match the claim type, Tyk performs intelligent conversion:

• Numbers to strings: 42 become "42"
• Booleans to strings: true becomes “true"
• Objects/arrays to strings: Converted to JSON representation

Best Practices

• Be Explicit About Types: When configuring allowedValues, use the same data type as expected in the token
• Use Arrays for Multi-Value Validation: Prefer array-based claims for permissions and roles
• Consider Empty Values: Remember that empty strings, arrays, and objects pass required validation
• Test Type Coercion: Verify behavior when token types don’t match expected types

Nested Claims (Dot Notation)

JSON Web Tokens often contain complex, hierarchical data structures with nested objects and arrays. Tyk’s custom claims validation framework supports dot notation syntax, allowing you to validate specific values deep within nested claim structures without having to validate entire objects.

Dot notation uses periods (.) to traverse nested object properties, similar to JavaScript object property access. This enables precise validation of deeply nested values while maintaining clean, readable configuration.

Basic Syntax:

• user.name - Access the name property within the user object
• metadata.department.code - Access the code property within department within metadata
• permissions.api.read - Access the read property within api within permissions

Nested Object Validation

The most common use case for dot notation is validating properties within nested objects, such as user metadata, organizational information, or configuration settings.

OAuth 2.0 Token Exchange relies upon nesting for the act (actor) claim.

Example Token

{
  "user": {
    "name": "John Doe",
    "email": "john.doe@company.com",
    "profile": {
      "department": "Engineering",
      "level": "senior",
      "location": {
        "country": "US",
        "region": "West"
      }
    }
  }
}

You could set the following configuration to validate the requester’s department and level:

{
  "customClaimValidation": {
    "user.profile.department": {
      "type": "exact_match",
      "allowedValues": ["Engineering", "Sales", "Marketing"]
    },
    "user.profile.level": {
      "type": "contains",
      "allowedValues": ["senior", "lead", "principal"]
    }
  }
}

Non-blocking Validation

The non-blocking validation feature specifically enables a gradual rollout approach to validation rules by allowing you to monitor validation failures without rejecting requests.

How Non-blocking Validation Works

When configured, a validation rule can be set to “non-blocking” mode, which means:

1. If validation passes, the request proceeds normally
2. If validation fails, instead of rejecting the request:

• a warning is logged in the gateway system logs
• the request is allowed to proceed to the upstream API

This allows you to:

• Monitor how new validation rules would affect traffic without disrupting users
• Gradually roll out stricter validation requirements
• Debug validation issues in production environments

Configuring Non-Blocking Mode

Non-blocking mode can be configured for any custom claim validation rule with the addition of the boolean nonBlocking flag, for example:

{
  "customClaimValidation": {
    "user.profile.department": {
      "type": "exact_match",
      "allowedValues": ["Engineering", "Sales", "Marketing"]
    },
    "user.profile.level": {
      "type": "contains",
      "allowedValues": ["senior", "lead", "principal"]
    },
    "user.preferences.notifications": {
      "type": "required",
      "nonBlocking": true
    }
  }
}

The nonBlocking flag in the validation rule for user.preferences.notifications means that if this claim is missing from the received token, the token will not fail validation, but a warning will be logged.

Managing Authorization

The claims within the JSON Web Token are used to configure the Authorization for the request - i.e. which resources it can access and what limits should be applied to that access.

Tyk creates an internal session object for the request. The session is used to apply the appropriate security policies to ensure that rate limits, quotas, and access controls specific to the user are correctly applied. The session also enable tracking and analytics for the user’s API usage.

Identifying the Session Owner

In order that this session can be correctly associated with the authenticated user, Tyk must extract a unique identity from the token.

The JWT specification defines the optional sub claim which identifies the principal that is the subject of the JWT. In OAuth/OIDC contexts this will usually be the end user (resource owner) on whose behalf the token was issued and so is typically used to identify the session owner.

Tyk provides a flexible approach to identifying the session owner, to account for other use cases where the sub field is not supplied or appropriate. The identity is extracted from the token by checking the following fields in order of precedence:

1. The standard Key ID header (kid) in the JWT (unless the skipKid option is enabled)
2. The subject identity claim identified by the value(s) stored in subjectClaims (which allows API administrators to designate any JWT claim as the identity source (e.g., user_id, email, etc.).
3. The sub registered claim

When an identity has been determined, it is stored in the session object in three locations:

• in the Alias field
• it is used to generate a hashed session Id stored in the keyID field
• in the session metadata as TykJWTSessionID

Note that session objects can be cached to improve performance, so the identity extraction is only performed on the first request with a JWT, or when the cache is refreshed.

In this example, skipKid has been set to true, so Tyk checks the subjectClaims and determines that the value in the custom claim user_id within the JWT should be used as the identity for the session object.

x-tyk-api-gateway:
  server:
    authentication:
      securitySchemes:
        jwtAuth:
          skipKid: true
          subjectClaims: [user_id]

Identifying the Tyk Policies to be applied

Security Policies are applied (or mapped) to the session object to configure authorization for the request. Policies must be registered with Tyk, such that they have been allocated a unique Tyk Policy Id.

Tyk supports three different types of policy mapping, which are applied in this priority order:

1. Direct policy mapping
2. Scope policy mapping
3. Default policy mapping

Note that, whilst a default policy must be configured for each API using JWT Auth, this will only be applied if there are no policies mapped in step 1 or 2. If scope policies are activated, these will be applied on top of the previously applied direct policies as explained in more detail in the section on combining policies.

Direct policies

You can optionally specify policies to be applied to the session via the policy claim in the JWT. This is a Private Claim and can be anything you want, but typically we recommend the use of pol. You must instruct Tyk where to look for the policy claim by configuring the basePolicyClaims field in the API definition.

In this example, Tyk has been configured to check the pol claim in the JWT to find the Policy Ids for the policies to be applied to the session object:

x-tyk-api-gateway:
  server:
    authentication:
      securitySchemes:
        jwtAuth:
          basePolicyClaims: [pol]

In the JWT, you should then provide the list of policy Ids as an array of values in that claim, for example you might declare:

  "pol": ["685a8af28c24bdac0dc21c28", "685bd90b8c24bd4b6d79443d"]

Default policies

You must configure one or more default policies that will be applied if no specific policies are identified in the JWT claims. These are configured using the defaultPolicies field in the API definition, which accepts a list of policy Ids.

x-tyk-api-gateway:
  server:
    authentication:
      securitySchemes:
        jwtAuth:
          defaultPolicies:
            - 685a8af28c24bdac0dc21c28
            - 685bd90b8c24bd4b6d79443d

Scope policies

Directly mapping policies to APIs relies upon the sharing of Tyk Policy Ids with the IdP (so that they can be included in the JWT) and may not provide the flexibility required. Tyk supports a more advanced approach where policies are applied based upon scopes declared in the JWT. This keeps separation between the IdP and Tyk-specific concepts, and supports much more flexible configuration.

Within the JWT, you identify a Private Claim that will hold the authorization (or access) scopes for the API. You then provide, within that claim, a list of scopes. In your API definition, you configure the scopes.claims to instruct Tyk where to look for the scopes and then you declare a mapping of scopes to policies within the scopes.scopeToPolicyMapping object.

x-tyk-api-gateway:
  server:
    authentication:
      securitySchemes:
        jwtAuth:
          scopes:
            scopeToPolicyMapping:
              - scope: read:users
                policyId: 685bd90b8c24bd4b6d79443d
              - scope: write:users
                policyId: 685a8af28c24bdac0dc21c28
            claims: [accessScopes]

In this example, Tyk will check the accessScopes claim within the incoming JWT and apply the appropriate policy if that claim contains the value read:users or write:users. If neither scope is declared in the claim, or the claim is missing, then the default policy will be applied.

Multiple scopes can be declared by setting the value of the authorization scopes claim in any of four configurations:

• a string with space delimited list of values (by standard)
  "permissions": "read:users write:users"
• an array of strings
  "permissions": ["read:users", "write:users"]
• a string with space delimited list of values inside a nested key
  "permissions": { "access": "read:users write:users" }
• an array of strings inside a nested key
  "permissions": { "access": ["read:users", "write:users"] }

If there is a nested key then you must use dot notation in the value configured for scopes.claims so, for the first two examples above, scopes.claims should be set to permissions whilst for the the two nested examples you would use permissions.access.

This example of a fragment of a JWT, if provided to an API with the configuration above, will cause Tyk to apply both policies to the session object:

{
  "sub": "1234567890",
  "name": "Alice Smith",
  "accessScopes": ["read:users", "write:users"]
}

Combining policies

Where multiple policies are mapped to a session (for example, if several scopes are declared in the JWT claim, or if you set multiple default policies) Tyk will apply all the matching policies to the request, combining their access rights and using the most permissive rate limits and quotas. It’s important when creating those policies to ensure that they do not conflict with each other.

Policies are combined as follows:

1. Apply direct mapped policies declared via basePolicyClaims
2. Apply scope mapped policies declared in scopeToPolicyMapping based upon scopes in the JWT
3. If no policies have been applied in steps 1 or 2, apply the default policies from defaultPolicies

When multiple policies are combined the following logic is applied:

• access rights A user gets access to an endpoint if ANY of the applied policies grant access
• rate limits Tyk uses the most permissive values (highest quota, lowest rate limit)
• other settings The most permissive settings from any policy are applied

Policy Best Practices

When creating multiple policies that might be applied to the same JWT, we recommend using partitioned policies - policies that control specific aspects of API access rather than trying to configure everything in a single policy.

For example:

• Create one policy that grants read-only access to specific endpoints
• Create another policy that grants write access to different endpoints
• Create a third policy that sets specific rate limits

To ensure these policies work correctly when combined:

• Set per_api to true in each policy. This ensures that the policy’s settings only apply to the specific APIs listed in that policy, not to all APIs globally.
• Avoid listing the same API ID in multiple policies with conflicting settings. Instead, create distinct policies with complementary settings that can be safely combined.

Session Updates

When a JWT’s claims change (for example, configuring different scopes or policies), Tyk will update the session with the new policies on the next request made with the token.

Missing Policies

If a policy Id is mapped to a session, but there is no policy with that Id, Tyk will fail safe and reject the request returning the HTTP 403 Forbidden response with Key not authorized: no matching policy. Tyk Gateway will also log the error: Policy ID found is invalid!.

Using Multiple Identity Providers

When using multiple Identity Providers, you may need to check different claim locations for the same information. Tyk supports multiple claim locations for the subject identity and policy Ids.

Prior to Tyk 5.10 and for Tyk Classic APIs, the Gateway could be configured to check single claims for the subject identity, base policy and scope-to-policy mapping. This did not support the scenario where different IdPs used different claims - for example, for the policy mapping, Keycloak uses scope, whereas Okta uses scp.

From Tyk 5.10+, Tyk OAS APIs can be configured to check multiple claim names to locate these data in the received token.

For example:

x-tyk-api-gateway:
  server:
    authentication:
      securitySchemes:
        jwtAuth:
          # Legacy single field (still supported)
          identityBaseField: "sub"

          # New multi-location support (Tyk 5.10+)
          subjectClaims:
            - "sub"
            - "username"
            - "user_id"

Split Token Flow

Split Token Flow addresses a fundamental security concern with JWT tokens: when a JWT is stored on a client device (browser, mobile app, etc.), all of its contents can be easily decoded since JWTs are only base64-encoded, not encrypted. This means sensitive information in the payload is potentially exposed.

The JWT consists of three parts:

In the above example you can see that they are:

• Header: eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9
• Payload: eyJzdWIiOiIxMjM0NTY3ODkwIiwibmFtZSI6IkpvaG4gRG9lIiwiaWF0IjoxNTE2MjM5MDIyLCJlbWFpbCI6ImhlbGxvQHdvcmxkLmNvbSJ9
• Signature: EwIaRgq4go4R2M2z7AADywZ2ToxG4gDMoG4SQ1X3GJ0

The Split Token approach provides a solution by:

1. Separating the JWT into its three component parts: header, payload, and signature
2. Storing only the signature on the client side (which by itself is meaningless)
3. Keeping the header and payload securely on the server side (in Tyk)
4. Reconstructing the complete JWT when needed for authentication

This approach combines the benefits of JWTs (rich claims, stateless validation) with the security of opaque tokens (no information disclosure).

When to Use Split Token Flow

Consider using Split Token Flow when:

• Your JWT payload contains sensitive information that shouldn’t be exposed to clients
• You want to prevent token inspection by malicious actors
• You need the flexibility of JWT while maintaining higher security
• You’re implementing systems that must meet strict security compliance requirements

How Split Token Flow Works

Here’s how the process works with Tyk Gateway:

1. Token Issuance:

   • A /token endpoint is configured on Tyk from which the client should request the access token
   • Tyk requests an access token from an authorization server (e.g., Keycloak) on behalf of the client
   • The authorization server returns a complete JWT
   • Tyk intercepts this response through a Virtual Endpoint
   • Tyk splits the JWT into its components and stores the header and payload in its Redis database
   • Only the signature portion is returned to the client as an “opaque” token

2. Token Usage:

   • The client makes API requests using only the signature as their access token
   • Tyk receives the request and looks up the stored header and payload using the signature
   • Tyk reconstructs the complete JWT and validates it
   • If valid, Tyk forwards the request to the upstream API with the full JWT

3. Security Benefits:

   • The client never possesses the complete JWT, only a meaningless signature
   • Token contents cannot be inspected by client-side code or malicious actors
   • Token validation still occurs using standard JWT verification

Implementing Split Token Flow

1. Create a Virtual Endpoint for Token Issuance

   First, create a virtual endpoint in Tyk that will:

   • Receive authentication requests from clients
   • Forward these requests to your authorization server
   • Split the returned JWT
   • Store the header and payload in Tyk’s storage
   • Return only the signature to the client
   • Here’s a simplified implementation:

   function splitTokenHandler(request, session, config) {
       // 1. Forward the client's credentials to the authorization server
       var authServerResponse = forwardToAuthServer(request);

       if (authServerResponse.Code !== 200) {
           return TykJsResponse({
               Body: authServerResponse.Body,
               Code: authServerResponse.Code
           }, session.meta_data);
       }

       // 2. Extract the JWT from the response
       var responseBody = JSON.parse(authServerResponse.Body);
       var fullJWT = responseBody.access_token;

       // 3. Split the JWT into its components
       var jwtParts = fullJWT.split(".");
       var header = jwtParts[0];
       var payload = jwtParts[1];
       var signature = jwtParts[2];

       // 4. Store the complete JWT in Tyk's Redis database using the signature as the key
       // This function would use Tyk's storage API to save the data
       storeJWTComponents(signature, header, payload, fullJWT);

       // 5. Modify the response to return only the signature
       responseBody.access_token = signature;

       return TykJsResponse({
           Body: JSON.stringify(responseBody),
           Code: 200
       }, session.meta_data);
   }


   Note that this example includes some level of abstraction for clarity and so is not a full implementation.

2. Configure Custom Pre-Auth Plugin

   Next, create a custom pre-auth plugin that reconstructs the JWT before it reaches the standard Tyk JWT Auth middleware:

   function reconstructJWT(request, session, config) {
       // 1. Extract the signature from the Authorization header
       var authHeader = request.Headers["Authorization"];
       var signature = authHeader.replace("Bearer ", "");

       // 2. Retrieve the stored JWT components using the signature
       var storedJWT = retrieveJWTComponents(signature);

       if (!storedJWT) {
           return TykJsResponse({
               Body: "Invalid token",
               Code: 401
           }, session.meta_data);
       }

       // 3. Replace the Authorization header with the full JWT
       request.SetHeaders["Authorization"] = "Bearer " + storedJWT.fullJWT;

       return request;
   }


3. Test the Implementation

   To test your Split Token Flow:

   Request a token from your Tyk virtual endpoint:

   curl -X POST https://your-tyk-gateway/token \
     -d "grant_type=client_credentials&client_id=your-client-id&client_secret=your-client-secret"


   You’ll receive a response with only the signature as the access token, for example:

   {
     "access_token": "EwIaRgq4go4R2M2z7AADywZ2ToxG4gDMoG4SQ1X3GJ0",
     "token_type": "bearer",
     "expires_in": 3600
   }


   Use this token to access your JWT Auth protected API where you have configured the custom pre-auth plugin and JWT Auth:

   curl https://your-tyk-gateway/protected-api \
     -H "Authorization: Bearer EwIaRgq4go4R2M2z7AADywZ2ToxG4gDMoG4SQ1X3GJ0"
